The intersecting chords theorem

The intersecting chords theorem is Euclid III.35, a result about two chords meeting inside a circle. Its decisive claim is that the products of the two segments into which one chord is divided and the two segments into which the other is divided are equal. The theorem therefore converts an interior intersection into a precise metric relation: the crossing itself determines an equality between two rectangles, even when the chords have different positions and different segment lengths.

Statement and Geometric Setting

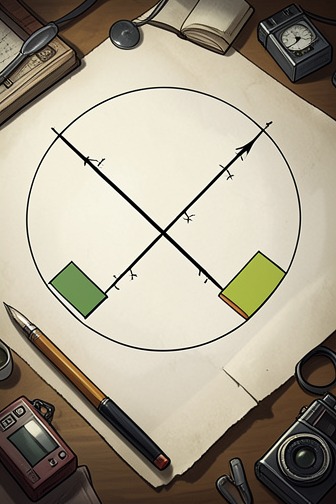

The proposition considers two chords whose lines intersect within a circle. Each chord is divided at the common point of intersection, producing two segments on each line. The rectangle contained by the segments of one chord is equal to the rectangle contained by the segments of the other. In modern algebraic notation, if the first chord is divided into segments of lengths a and b, and the second into segments of lengths c and d, the theorem asserts ab = cd. The geometrical language of rectangles expresses multiplication through area rather than through numerical symbols.

The result belongs to the circle geometry developed in Book III. Its objects are ideal straight lines and a circle considered in a common plane, within the framework established by definitions, postulates, and axioms. The surrounding system defines a proposition as a result obtained by reasoning, while distinguishing a theorem, which asserts a principle, from a problem, which proposes that something be constructed. The intersecting chords theorem is accordingly not an instruction for drawing the figure but a claim whose truth must be demonstrated.

Proof Structure and Special Cases

The presentation separates the theorem into several figures. In the first, both given straight lines pass through the centre of the circle. They are then bisected at their point of intersection, so the rectangles under their corresponding segments become the squares of their halves. Since the relevant halves are equal in the central configuration, the two products are equal. This special case makes the theorem visible through symmetry before the more general arrangement is addressed.

The second figure treats a mixed case: one of the lines passes through the centre and the other does not. The proof introduces an additional construction and records an equality involving the resulting segments. The centre is thus not the final condition of the theorem; it is a temporary aid that allows the general relation to be connected with a diameter and with already established properties of the circle.

In the third figure, neither of the given lines passes through the centre. A diameter is drawn through their intersection, and the argument again reduces the required equality to relations produced by the added line. The visible construction is not ornamental. It supplies the intermediate segments and equalities through which the final equality of the two rectangles can be established. The theorem consequently moves from the easiest central configuration to the fully general interior crossing without changing its conclusion.

Euclidean Method and Permitted Instruments

The theorem exemplifies the distinction between a construction and its proof. In the Euclidean framework, the permitted instruments are the straightedge and compass. The postulates grant that a straight line may be drawn from any point to any other point and that a circle may be described with any centre and at any distance from that centre. These permissions make the auxiliary diameter and the other lines in the figures legitimate parts of the argument.

The diagram alone does not establish the theorem. Definitions provide the objects under discussion, axioms state general truths taken as self-evident, and demonstration proves that the constructed relations entail the proposition. Superposition is defined as conceiving one magnitude placed upon another so that corresponding parts coincide, but the intersecting chords proof chiefly relies on constructed lines, equal segments, and rectangle relations. Its force lies in the conversion of a spatial configuration into a chain of independently supported equalities, ending in the customary conclusion, “Q. E. D.”

Colour, Diagram, and Mathematical Communication

This edition presents such reasoning through coloured diagrams as well as verbal explanation. It argues that geometrical diagrams are the materials of geometrical science: their forms display the relative quantities of their parts, while demonstration makes those relations intelligible through reasoning. In the account of the method, letters attached to points and lines are arbitrary names; differently coloured parts instead appear to name themselves because corresponding forms are represented by corresponding colours.

That claim matters especially for a theorem with several intersecting segments and auxiliary constructions. A spoken reference to a particular lettered angle or line requires learners to trace the letters and reconstruct the intended magnitude. A reference to a coloured line or region is presented as more immediate, allowing the relevant part to be seen at once. The same colour can also mark parts asserted to be equal, keeping the given data visually present throughout the reasoning rather than allowing it to disappear into memorized verbal sequence.

The introduction further claims that colour permits the eye and ear to be addressed simultaneously during oral demonstration. It reports that experiments by the inventor and others who adopted the method found that the Elements of Euclid could be acquired in less than one third of the time usually employed and retained more permanently. Whether or not that broad educational claim is accepted beyond the book, the intersecting chords theorem shows the intended operation clearly: the eye tracks the crossing, the added diameter, and the corresponding segments while the verbal proof identifies the equal products.

Significance in Circle Geometry

The theorem’s significance is the invariant it extracts from a changing figure. The chords may pass through the centre, only one may do so, or neither may do so; the auxiliary construction changes, but the equality of the two segment-products remains. The intersection is therefore not merely a point where lines happen to meet. It is the organizing condition that balances the two decompositions of the circle’s interior.

As a piece of Euclidean reasoning, the proposition also demonstrates how visual immediacy and formal necessity can reinforce rather than replace one another. Colour and diagram make the relations easier to locate, while definitions, permitted constructions, axioms, and proof determine what may legitimately be concluded. The theorem thus stands both as a result of circle geometry and as a model of the book’s larger pedagogical ambition: to make mathematical relations visible without reducing demonstration to memory or appearance.
